TriVista Basic
The MonoVista Confocal Raman System+ (CRS+) is a high-end measurement system with simple handling
The TriVista is the entrance into the ultra-high-end Raman and photoluminescence spectroscopy.
It combines the high-resolution bandpass capability of a DuoVista (link), with the unmatched spectral resolution, throughput and imaging capabilities of S&Is MonoVista systems.
All TriVista systems are based on the successful Princeton Instruments SpectraPro HRS imaging monochromator series.
While the TriVista is best suited for customers with previous knowledge in the field of spectroscopy, due to it providing a wide array of free degree usage, our VistaControl software and various options for extensive motorization of the equipment (link TriVista CRS) can help to significantly flatten the learning curve and make it almost as easy to handle as one of our MonoVista systems is.
TriVista Systems are best suited for ultra-high-end applications providing the best solution for
- The necessity of ultra-high resolution in additive dispersion providing an unbeatable Spectral Resolution (i.e. FWHM < 0.1 cm—1 at 633 nm on a TR777)
- Lowest frequency measurements down to ≤ 5 cm-1 in subtractive mode
- Variable Excitation-Wavelengths experiments supported to observe the dependence of Raman-Spectra with respect to the excitation-wavelength
S&I can provide and propose multiple different tuneable lasers, to unlock the TriVistas full potential - Maximum flexibility and optional enhancements, like a huge selection of different types of microscopes, lasers and accessories for various applications

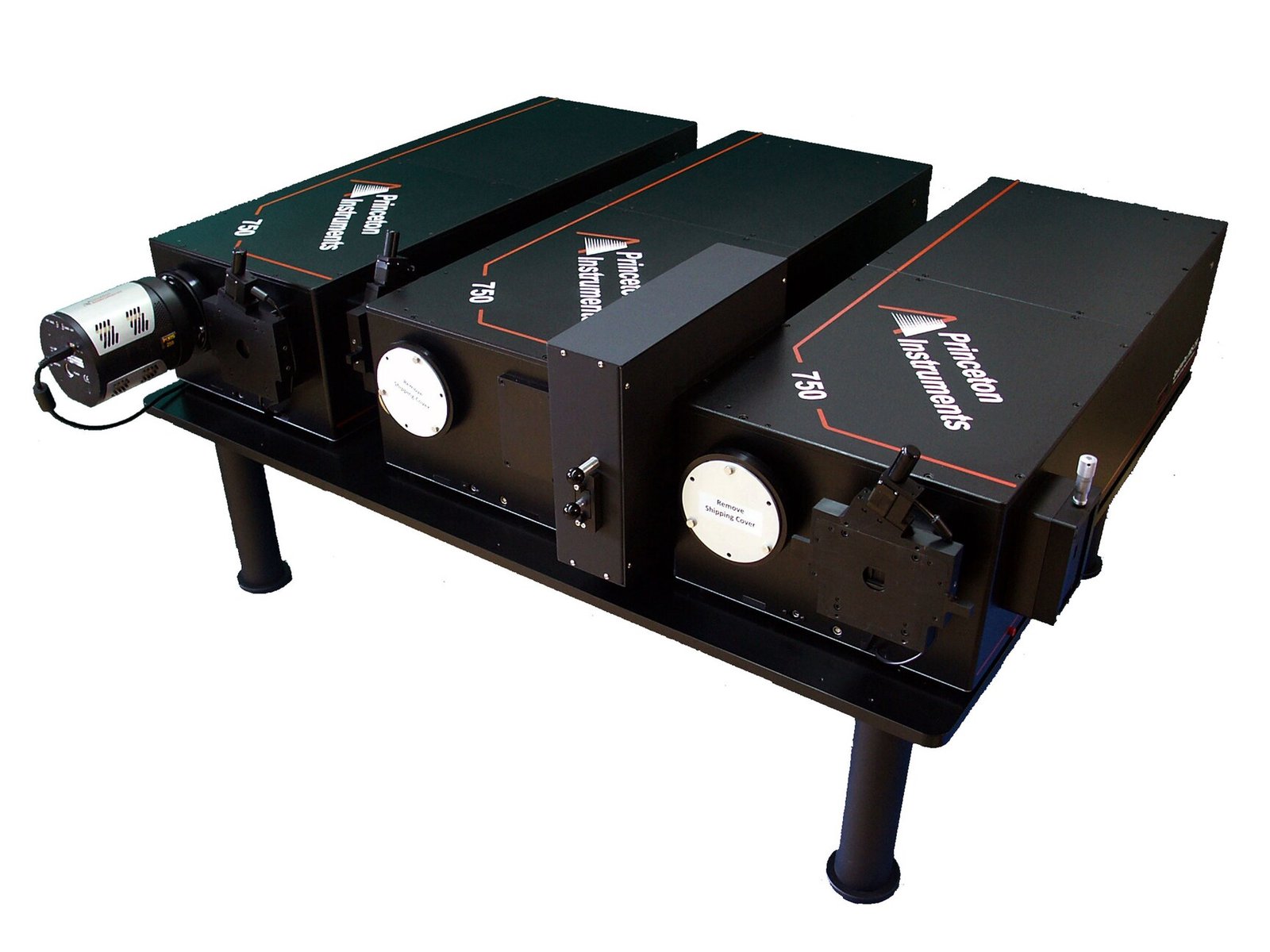

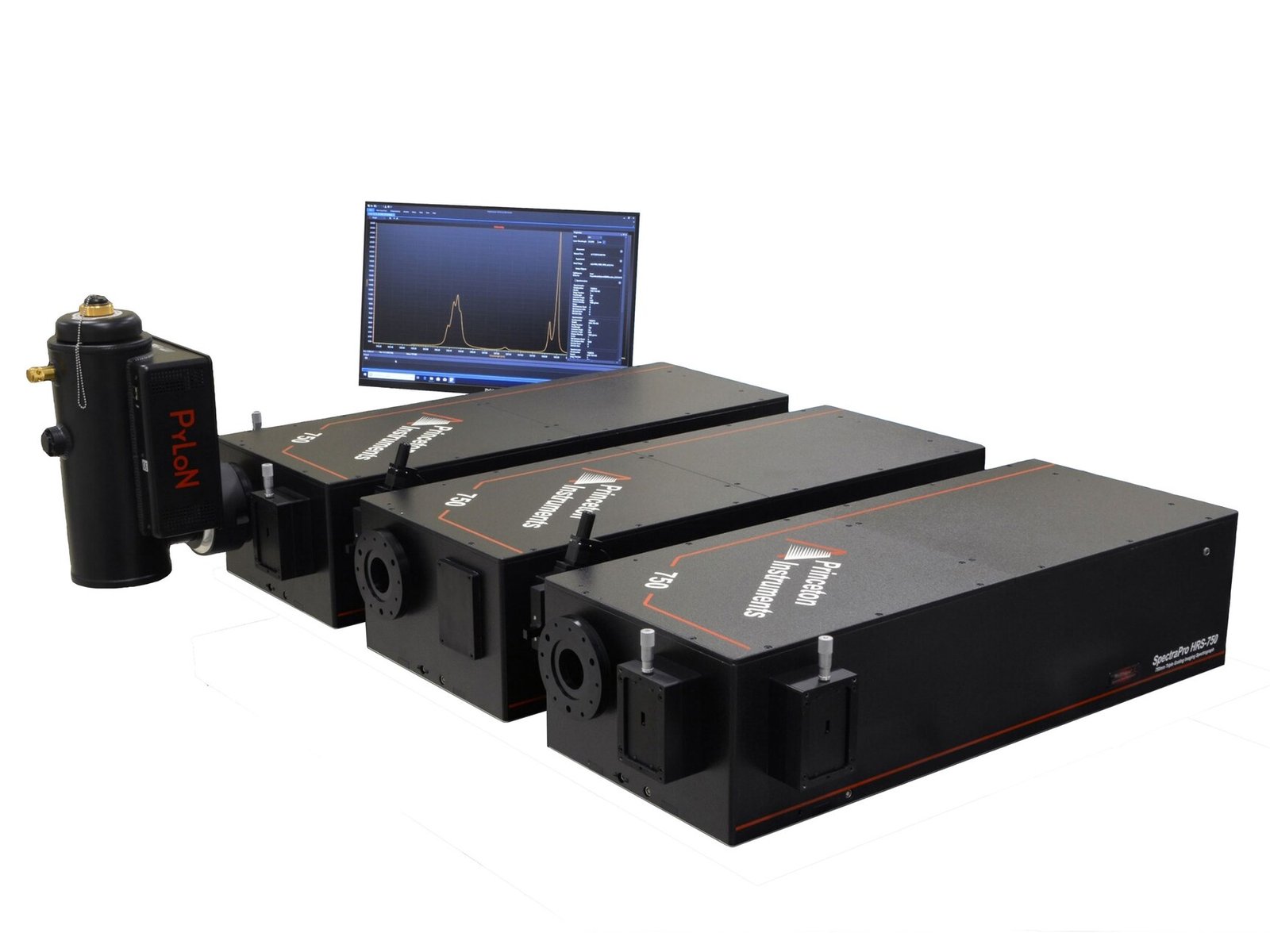

The standard “naked” TriVista consists of a base plate, for a sturdy and movement-free connection between the three stages and is available in three different sizes:
TR555 – triple 500mm Czerny-Turner monochromator setup with a double stage 500mm bandpass and as well as a 500mm imaging stage.
TR557 – double 500mm bandpass with a 750mm imaging stage
TR777 – double 750mm bandpass with a 750mm imaging stage, providing the highest possible resolution for additive and subtractive mode spectroscopy
Features
- Deep UV to IR wavelength range
- High spectral resolution, i.e. FWHM < 0.1 cm–1 at 633 nm (TR777 in additive mode)
- Low frequency Raman measurements down to 5 cm-1 or less, depending on sample
- Operable for unlimited amount of laser wavelength in the range from DUV to NIR
- Useful for tunable laser-excitation
- Easy software-switch between “Additive” and “Subtractive” Dispersion-Mode
- Simultanious Stokes / Anti-Stokes Measurements
- Easy switch between Triple- and Single-Stage Operations (with optional Bypass-enhancement)
Additive-Mode
In additive dispersion-mode each stage of the spectrometer-system disperses the spectrum of the incoming light. So, each stage adds an additional dispersion. The first monochromator stage disperses the spectral radiation into separate wavelength components, allowing a specific spectral window to enter the next stage. The same way as the second stage, the third stage adds a third dispersion to the spectrum which is finally coupled to a detector in the last stage with even a lower level of stray light.
The possible resolution is as high as for a single spectrometer with a focal length which is equal to the sum of the focal length of the 3 stages.
In subtractive mode, the first and the second stages of spectrometer work as a tunable bandpass filter to allow only the desired portion of spectrum to pass through and reducing stray light levels.
A polychromatic light enters the first stage through the entrance slit and is dispersed by the first grating. The intermediate Slit acts as a bandpass filter passing only the light between wavelengths λ1 and λ2. The grating in the second Stage recombines all the dispersed light and focuses it into the entrance slit of the third stage, producing again a polychromatic light limited to the spectral range between wavelengths λ1 and λ2.
